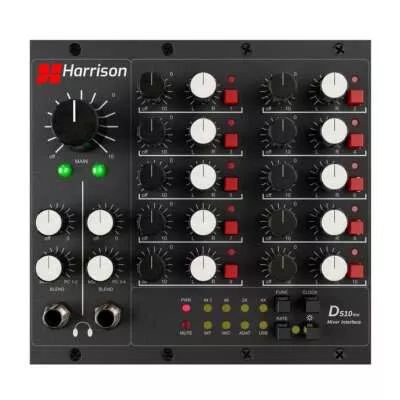

Harrison D510mx: Analog Summing Mixer for D510 500 Series Rack

The Harrison D510mx Mixer Interface transforms the D510r 500 Series Rack into an extremely powerful and flexible 10x2 analog summing mixer. Building on Harrison’s legacy of sonic excellence, the D510mx delivers the renowned weight, punch, and "3D" depth of Harrison analog summing while significantly enhancing monitoring capabilities for modern hybrid workflows.

Custom Analog Mixing and Summing

The D510mx is designed to integrate into two slots of the Harrison D510r 500 Series rack, giving you the power to create a high-performance analog mixing console in a compact format.

• 10x2 Analog Summing: The module allows you to create stereo mixdowns from eight 500 Series module slots alongside the two dedicated analog inputs available in slots 9 and 10 of the D510r rack.
• Individual Controls: Each channel features individual Pan & Level controls, allowing you to balance and position your signals across the stereo outputs with Harrison precision.
• Dedicated Output: A dedicated 'MAIN' mix output control provides easy level management for the final stereo sum.
• Portable Power: Paired with the D510r, the D510mx creates an extremely powerful (and portable) analog tracking and summing system housed in only 3U.

Advanced Headphone Monitoring

The D510mx includes advanced monitoring tools that enhance both recording and mixing workflows.

• Dual Headphone Outputs: Features dual independent stereo headphone outputs with separate gain controls.
• Headphone 'Blend': Each headphone output includes a unique 'blend' function that allows the user to mix between the analog MIX output (the summed signal) and the digital PC return (from an optional interface card).
• Hybrid Monitoring: When used with the optional D510dante interface card, the headphone outputs can create monitor mixes from either the direct analog output or from any connected device on the Dante network, such as DAW returns.

System Integration and Flexibility

The D510mx seamlessly integrates with the Harrison D510 system's optional digital interface cards.

• Digital Connectivity: The D510mx analog mix bus can be digitized and returned to your DAW by pairing it with the optional D510dante (AoIP) or D510ua (USB/ADAT) audio interface cards.
• Versatile Design: This system flexibility allows you to build a custom rack that functions as a powerful analog summing box, a high-performance tracking rig, or a dedicated monitor controller, all within the same expandable chassis.
